TH5-NT CE certificated model

Detailed Product Description

Impregnation under high vacuum with epoxy resin with filling compounds
Patented magnetic core at low consumption
Metal box and coated with polyester powders
Suitable for neon and also Argon tubing

Features:
- Traditional coil and core transformer.
- Epoxy resin filled and vacuum potted.
- High reliability and long life.
- passed CE certification
- Patent No.:ZL2005300333887

Environmental Specifications :
- Cooling: Convection
- Installation: Indoor or Outdoor

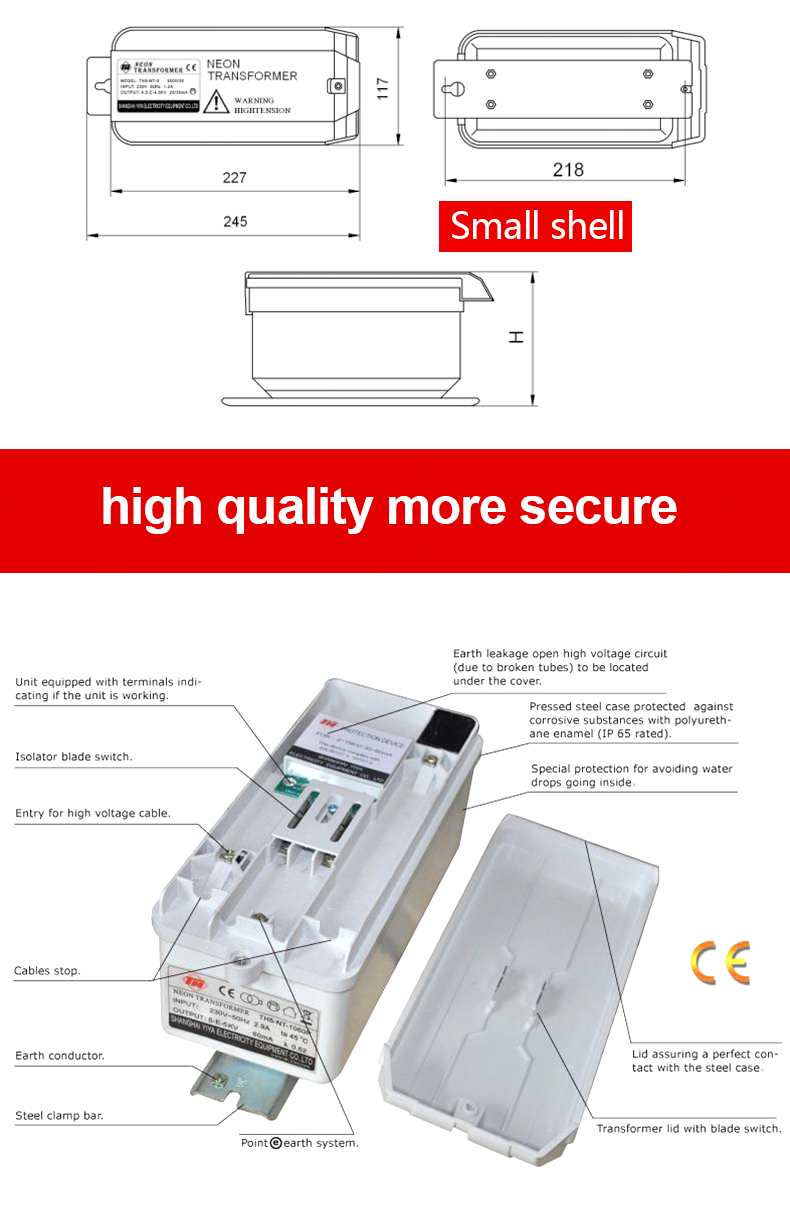

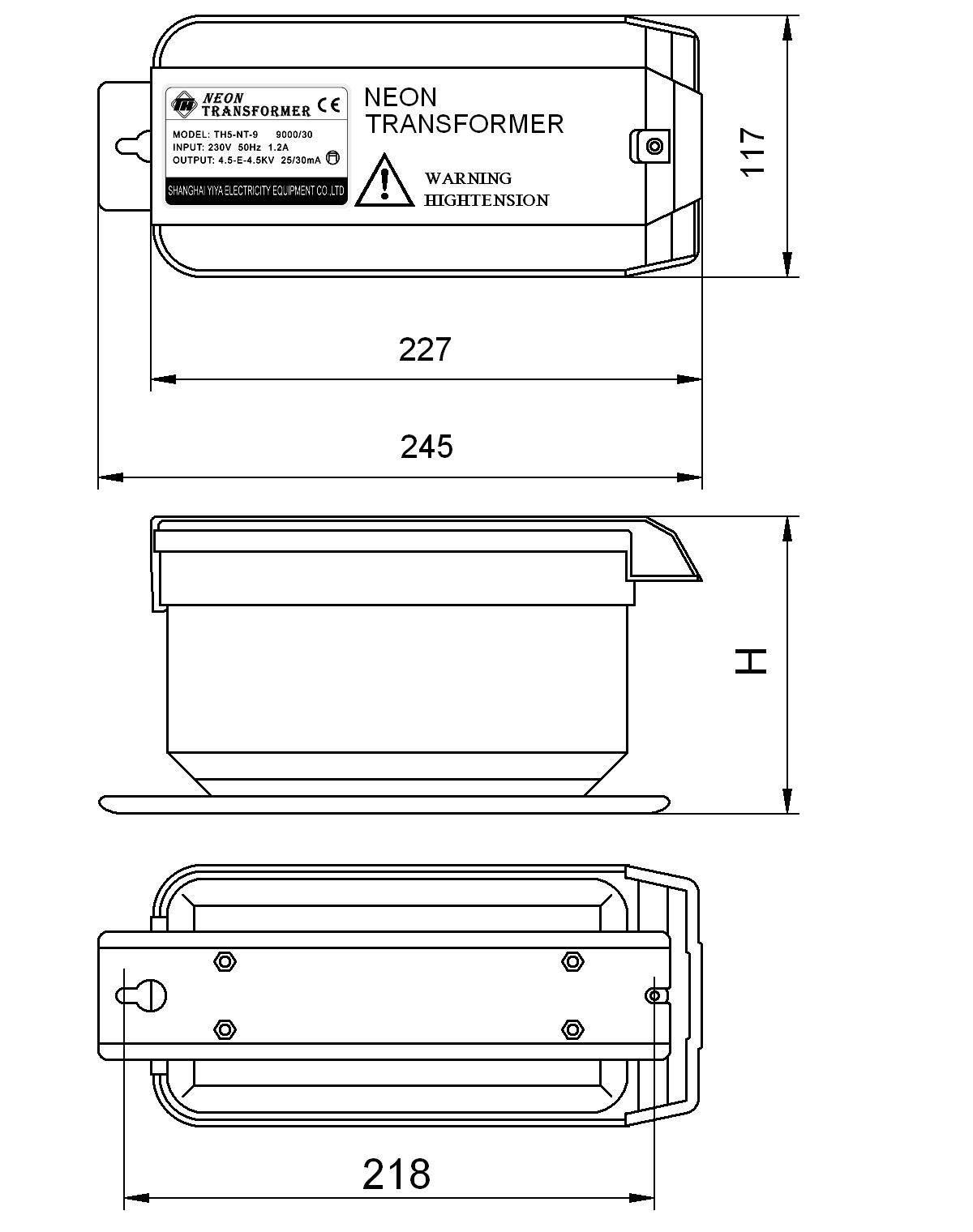

TH5-NT-9(外形图)

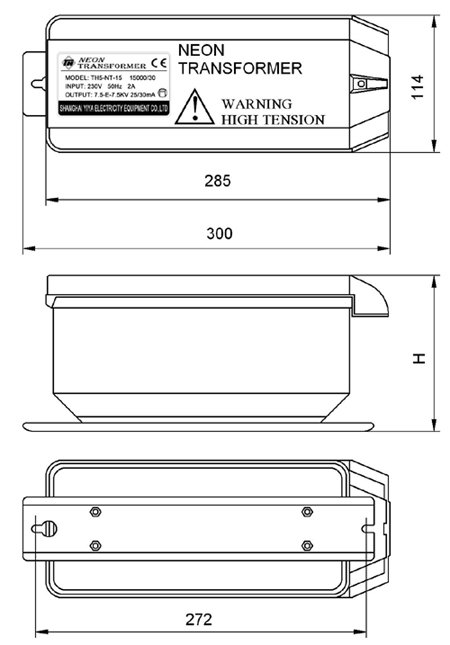

TH5-NT-15(外形图)

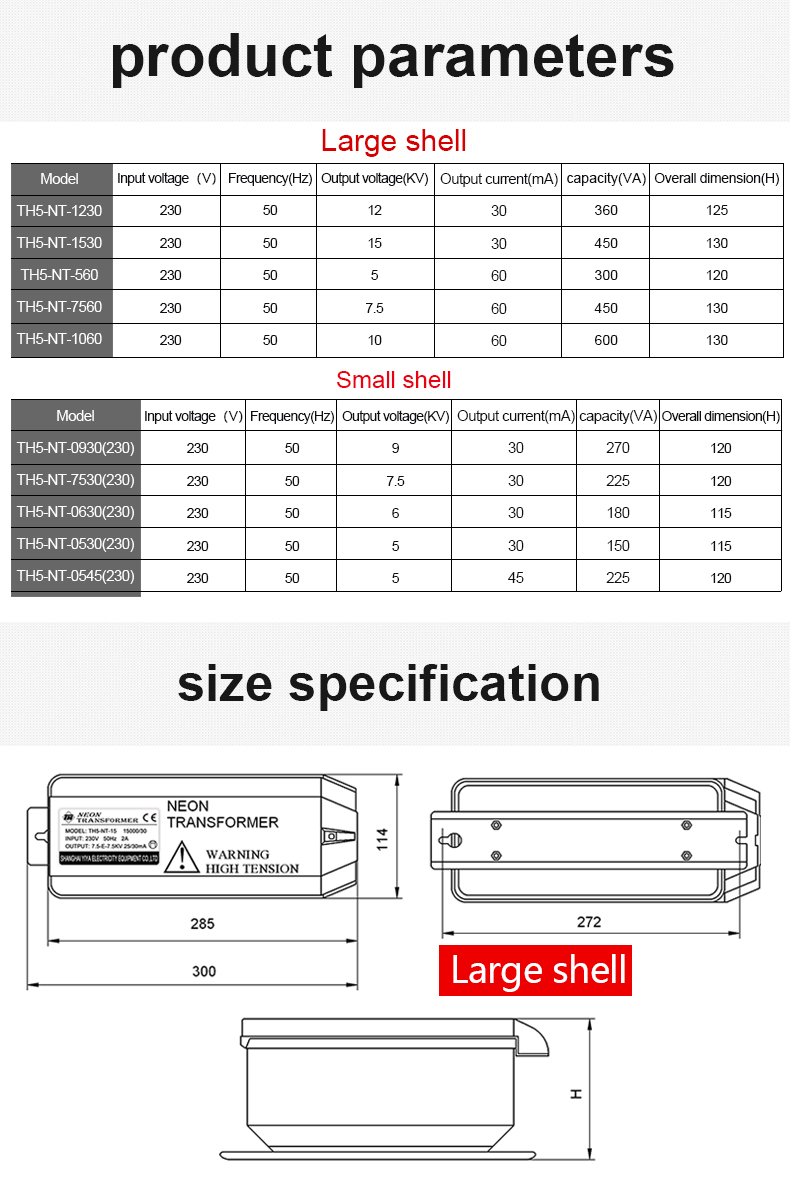

Specification:
230V 50Hz 30mA Series CE Certification Transformer (different input voltage and frequency are optional)

Vendor's Model Name

Input Voltage(V)

Input Current(A)

Frequency(Hz)

Output Voltage(KV)

Output Current(mA)

Watts (VA)

TH5-NT-1530(230)

230

2

50

15

30

450

TH5-NT-1230(230)

230

1.6

50

12

30

360

TH5-NT-1030(230)

230

1.32

50

10

30

300

TH5-NT-0930(230)

230

1.2

50

9

30

270

TH5-NT-7530(230)

230

1

50

7.5

30

225

TH5-NT-0630(230)

230

0.8

50

6

30

180

TH5-NT-0530(230)

230

0.7

50

5

30

150

TH5-NT-1245(230)

230

2.4

50

12

45

600

TH5-NT-1045(230)

230

2

50

10

45

450

TH5-NT-0945(230)

230

1.8

50

9

45

405

TH5-NT-7545(230)

230

1.5

50

7.5

45

337.5

TH5-NT-0545(230)

230

1

50

5

45

225

TH5-NT-1060(230)

230

2.6

50

10

60

600

TH5-NT-0960(230)

230

2.4

50

9

60

540

TH5-NT-7560(230)

230

2

50

7.5

60

450

TH5-NT-0660(230)

230

1.6

50

6

60

360

TH5-NT-0560(230)

230

1.32

50

5

60

300

Remark: Critical specification should be confirmed before placement of order, for further information, please contact with us.
