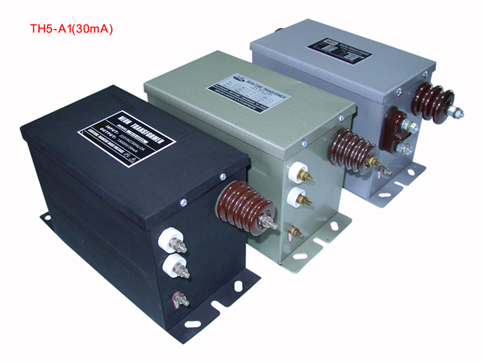

TH5-A1



TH5-A1

Detailed Product Description
- Asphalt resin filled and vacuum potted.
- Patented magnetic core at low consumption.
- Heavey duty metal box and coated power.
- User Friendly-Adapts to most grounding situations.

Features:
- Traditional coil and core transformer
- Compact size and light weight
- Resin filled and vacuum potted
- High reliability and long life



Environmen tal Specifications :
- Cooling: Convection



Specificaitons


Model

Input Voltage
(V)

Frequency
(Hz)

Secondary Voltage
(KV)

Output Current
(mA)

Capacity
(VA)

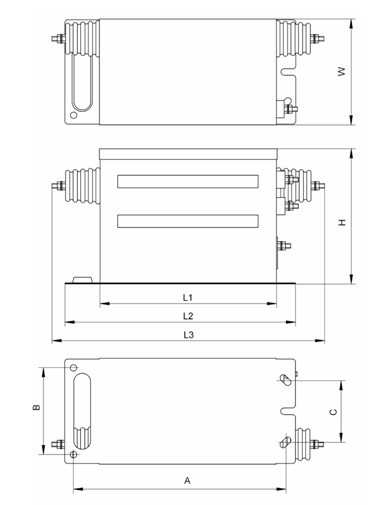

Outline Size

L1

L2

L3

W

H

A

B

C

TH5-A1

120



60

6

30

180

180

230

290

100

130

205

60

60

9

30

270

190

250

305

115

140

230

98

65

12

30

360

190

250

305

115

140

230

98

65

15

30

450

200

260

315

115

150

240

98

65

220



50

6

30

180

180

230

290

100

130

205

60

60

9

30

270

190

250

305

115

140

230

98

65

12

30

360

190

250

305

115

140

230

98

65

15

30

450

200

260

315

115

150

240

98

65



120



60

3

60

180

180

230

290

100

130

205

60

60

5

60

300

190

250

305

115

140

230

98

65

6

60

360

190

250

305

115

140

230

98

65

7.5

60

450

200

260

315

115

150

240

98

65

10

60

600

220

270

340

115

150

245

65

65



220



50

3

60

180

180

230

290

100

130

205

60

60

5

60

300

190

250

305

115

140

230

98

65

6

60

360

190

250

305

115

140

230

98

65

7.5

60

450

200

260

315

115

150

240

98

65

10

60

600

220

270

340

115

150

245

65

65
