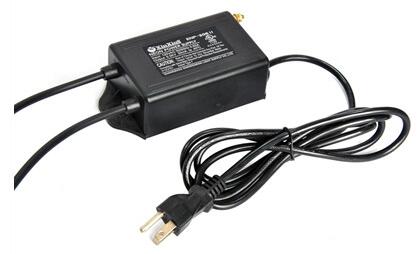

ENP-206II

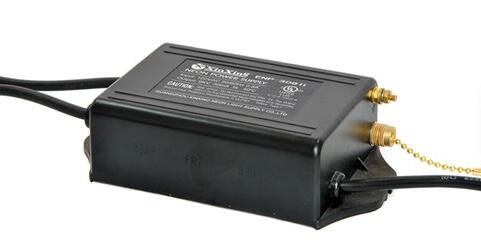

ENP-308II
Product Features:
1.UL-2161Listed&CSA Standard;
2.Complies with secondary Ground-Fault protection requirements;
3.Designed with pull-chain switch, suitable for small light signs indoor;
4.High power factor and low electromagnetic interference;
5.Bulit-in overload and open-circuit protection device;
6.High brightness and No Mercury migration or jelly-bean effects.
Specifications:
|
Items
|
Voltage (Input) (V)
|
Current (Input) (A)
|
Power Factor (%)
|
Current (Output)
(mA)
|
Voltage (Output)
(KV)
|
Weight
(Kg)
|
Size
(mm)
|
|
Model
ENP-206II
|
120V AC 50/60Hz
|
0.65
|
≥90
|
30
|
6.5
|
0.78
|
156 ×77× 47
|
|
Model
ENP-308II
|
120V AC 50/60Hz
|
0.80
|
≥90
|
30
|
9
|
1.05
|
172 ×94× 47
|
The loaded lamp (tube) length can be adjusted to the maximum value listed below:
|
Items Models
|
Tube Diameter (mm)
|
7
|
8
|
9
|
10
|
11
|
12
|
13
|
15
|
|
Gas Pressure (mmHg)
|
18
|
17
|
15
|
13
|
12
|
11
|
10
|
9
|
|
Tube Type
|
Maximum Load Length (ft)
|
|
ENP-206II
|
Neon
|
12
|
13
|
15
|
19
|
22
|
26
|
29
|
33
|
|
Mercury
|
14
|
15
|
18
|
23
|
26
|
31
|
33
|
40
|
|
ENP-308II
|
Neon
|
16
|
18
|
21
|
25
|
30
|
35
|
39
|
45
|
|
Mercury
|
18
|
21
|
25
|
30
|
36
|
42
|
46
|
55
|
|
