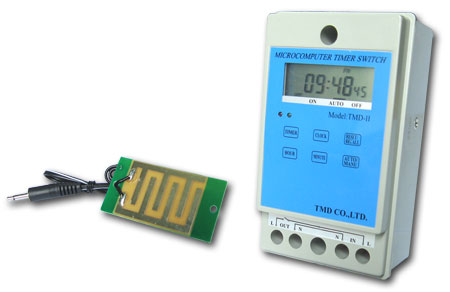

Microcomputer Timer



Microcomputer Timer

Features:
- Built-in Timer controlled by microcomputer.
- Operator friendly.
- Built-in circuit watchdog.
- Supports two types of power supply. No need to change battery.
- Super-current contact switch. Small power load can be controlled directly.
- Rain sensor advantage. Power automatically switches in rain conditions.
- Workable in both 220V and 380V power network.
- 6 on-off groups.





Re: 1) The load can be small power direct load or coil of AC contactor for indirect control.

       2) For small power load, it can be controlled directly. For super power load and 3-phase load, it is controlled indirectly through AC contactor.



CAUTION: Avoid short circuit for 380V load.

Specification

  Power

  220VAC

  Contact Switch Load

  10A(resistive)

  Timer Accuracy

  0.5 S/Day

  Standby Batter

  1500 mA/H

  Size

  123x73x48mm

  Weight

  0.35kg

Note: The load of contact switch is resistive load. For condenser load and inductive load, the load should be lowered accordingly.
