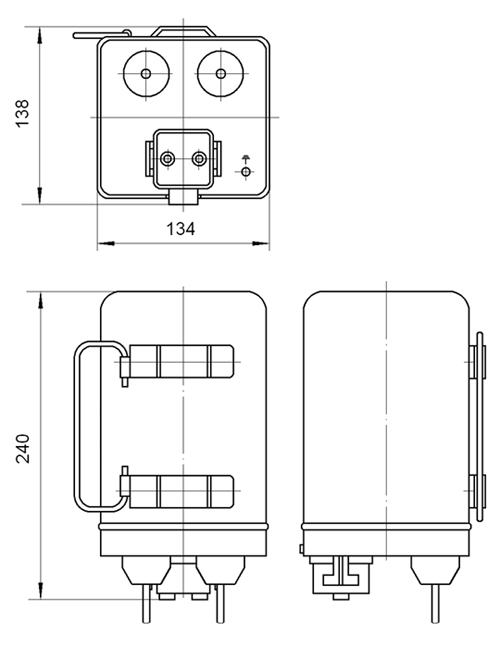

TH5-JP



TH5-JP

Detailed Product Description
Features:
- Convenient to install
- Waterproof,can be install alone,not need metal box
- Fusible cut-out protection device
- Energy conservation transformer
- Asphalt resin filled and vacuum potted.
- Patented magnetic core at low consumption.
- Heavey duty metal box and coated power.
- User Friendly-Adapts to most grounding situations.



 Specification:

Vendor's Model Name Input Voltage(V) Input Current(A) Frequency(Hz) Output Voltage(KV) Output Current(mA) Watts (VA)
TH5-JP(220) 200 0.85 60 15 20 170
TH5-JP(100) 100 1.7 60 15 20 160

Remark: Critical specification should be confirmed before placement of order, for further
