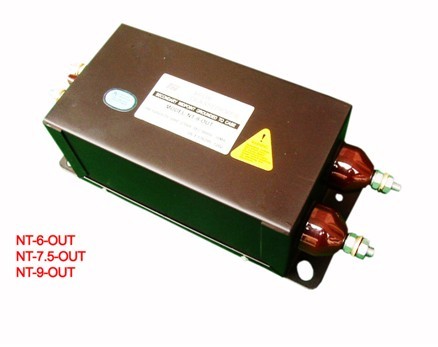

NT-OUT Gerneral model (small)
Detailed Product Description
Asphalt resin filled and vacuum potted.
Patented magnetic core at low consumption.
Heavey duty metal box and coated power.
Features:
- Traditional coil and core transformer
- Compact size and light weight
- Resin filled and vacuum potted
- High reliability and long life
- Patent No.: ZL 02 3 43650.6
Specification:
220V 50Hz 30mA Series Transformer (230V,240V,60Hz is optional)Vendor's Model Name
Vendor's Model Name
|
Input Voltage(V)
|
Input Current(A)
|
Frequency(Hz)
|
Output Voltage(KV)
|
Output Current(mA)
|
Watts (VA)
|
NT-0930-OUT(220)
|
220
|
1.3
|
50
|
9
|
30
|
270
|
NT-7530-OUT(220)
|
220
|
1.1
|
50
|
7.5
|
30
|
225
|
120V 60Hz Series Transformer
Vendor's Model Name
|
Input Voltage(V)
|
Input Current(A)
|
Frequency(Hz)
|
Output Voltage(KV)
|
Output Current(mA)
|
Watts (VA)
|
NT-0930-OUT(120)
|
120
|
2.8
|
60
|
9
|
30
|
270
|
NT-7530-OUT(120)
|
120
|
2.4
|
60
|
7.5
|
30
|
225
|
Remark: Critical specification should be confirmed before placement of order, for further information ,please contact with us.
