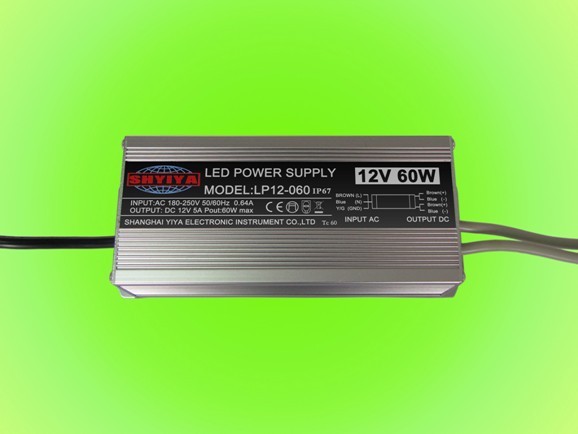

LP12-060



LP12-060

Features:
    1.  High efficiency, low temp. movement(<18℃ in full load),superior stability.
    2.  Power supplies can be used in dry,damp and wet locations.
    3.  Built-in EMI filter & low ripple, reduce LED attenuation & increase life span.
    4.  Aluminum mental housing, easy for heat dissipation & ensure stability.
    5.  Automatic protection for over voltage, over current & high temperature.
    6.  8-hour full load aging test, strict QC before delivery.
    7.  IP66/67 waterproof rating, suitable for outdoor & indoor application.




 Specifications:

 Model Number LP12-060
 AC Input
 Input Voltage Range AC 180-250V
 Frequency 50Hz/60Hz
 Input Current 0.64A
 DC Output
 Output Voltage DC 12V
 Output Current 5A (max.)
 Rated Output Power 60W (Max.)
 Waterproof Rating IP67
 Automatic Protection Over Voltage & Current / Short Circuit / Temperature protection
 Protection Reset Automatic
 Housing Dimension LxWxH  180x69.5x45.5mm
 Weight
 Certificate CE




Prev Product: LP12-100 Next Product: LP12-030
