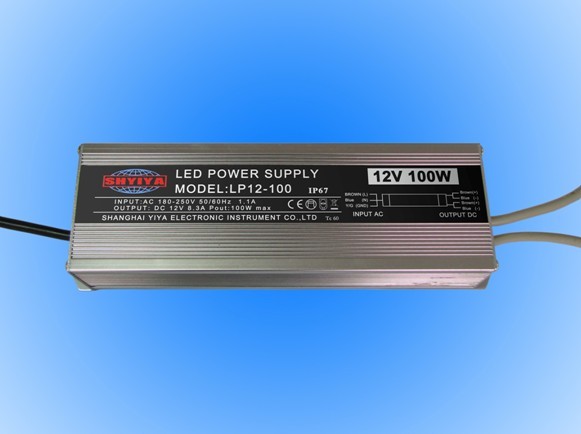

LP12-100
Features:
1. High efficiency, low temp. movement（＜18℃ in full load）,superior stability.
2. Power supplies can be used in dry,damp and wet locations.
3. Built-in EMI filter & low ripple, reduce LED attenuation & increase life span.
4. Aluminum mental housing, easy for heat dissipation & ensure stability.
5. Automatic protection for over voltage, over current & & high temperature.
6. 8-hour full load aging test, strict QC before delivery.
7. IP66/67 waterproof rating, suitable for outdoor & indoor application.
Specifications:
|
Model Number
|
LP12-100
|
|
AC Input
|
|
Input Voltage Range
|
AC 180-250V
|
|
Frequency
|
50Hz/60Hz
|
|
Input Current
|
1.1A
|
|
DC Output
|
|
Output Voltage
|
DC 12V
|
|
Output Current
|
8.33A (max.)
|
|
Rated Output Power
|
100W (Max.)
|
|
Waterproof Rating
|
IP67
|
|
Automatic Protection
|
Over Voltage & Current / Short Circuit / Temperature protection
|
|
Protection Reset
|
Automatic
|
|
Housing Dimension LxWxH
|
240x69.5x45.5mm
|
|
Weight
|
|
|
Certificate
|
CE
|
